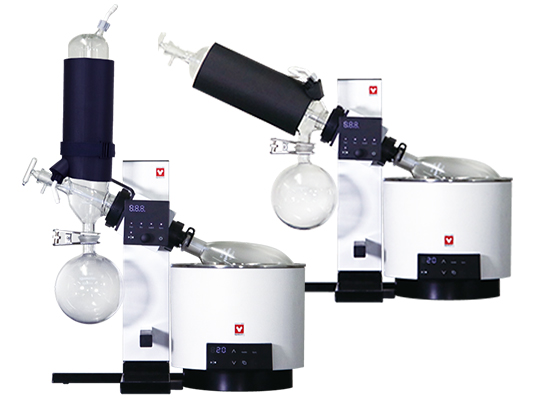

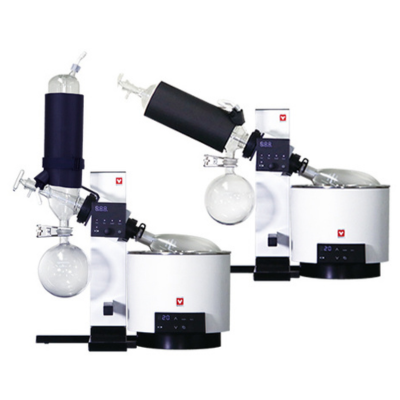

Yamato Scientific Rotary evaporator
Yamato Scientific Rotary evaporator
Yamato-scientific will deliver Rotary evaporator with Intuitive operability, wide rotation speed range. Improved durability of vacuum seal with liquid accumulation prevention structure.
Features of Rotary evaporator.
- Easy height adjustment with the jack handle. Glass set and bath can be recombined left and right. Intuitive operability, wide rotation speed range. Improved durability of vacuum seal with liquid accumulation prevention structure. AC adapter is stored neatly. Two easy-to-care baths Condenser insulation is included as standard equipment (common to glassware sets A and B) A sample introduction tube cover prevents backflow of condensate (Glassware set B) *Patent pending
We yamato-scientific will deliver Rotary evaporator with Intuitive operability, wide rotation speed range. Improved durability of vacuum seal with liquid accumulation prevention structure.
Main Specifications
Specifications
| Product Code | Model | Motor | Rotation number control range | Condenser Type | External dimensions（W×D×H mm） | Power supply | Weight | |
|---|---|---|---|---|---|---|---|---|
| 255352 | RE202 | DC brushless motor | 5 to 315rpm encoder type digital setting and display | Type A (diagonal) / Type B (vertical) | 529×324×534mm | AC100V 1A | 9kg | |
| 255774 | RE202-E | DC brushless motor | 5 to 315rpm encoder type digital setting and display | Type A (diagonal) / Type B (vertical) | 529×324×534mm | AC100-115V 1A (50/60Hz) |
9kg | – |
| 255683 | RE212-D | DC brushless motor | 5 to 315rpm encoder type digital setting and display | Type A (diagonal) / Type B (vertical) | 529×324×534mm | AC100-230V 1A (50/60Hz) |
9kg | – |
Specifications
| Product Code | Model | External dimensions（W×D×H mm） | Power supply | Weight |
|---|---|---|---|---|
| 255443 | RE801A-O | 828×400×727mm | AC100 to 240V 1.5A | 15kg |
| 255440 | RE801A-W | 828×400×727mm | AC100 to 240V 1.5A | 15kg |
| 255444 | RE801B-O | 643×400×727mm | AC100 to 240V 1.5A | 15kg |
| 255441 | RE801B-W | 643×400×727mm | AC100 to 240V 1.5A | 15kg |
| 255445 | RE801C-O | 643×400×727mm | AC100 to 240V 1.5A | 15kg |
| 255442 | RE801C-W | 643×400×727mm | AC100 to 240V 1.5A | 15kg |
