Yamato-Scientific High temperature furnace
Yamato-Scientific High temperature furnace
Yamato-scientific will deliver RCF Free FO Series and FP Series Muffle Furnace. The structure that does not expose the heater reduces contamination and deterioration of the
heater. Since it is heated by radiant heat from the heat plate, a highly accurate and stable
temperature distribution can be obtained..
RCF-free (alumina fiber) that complies with RCF regulations is used for the furnace chamber.
Features of High Performance Muffle Furnace
- RCF-free, safe and secure
- Since the heater does not appear, it is ideal for microanalysis and contamination prevention.
- Equipped with program operation
- Enhanced with safety functions
- Uses R thermocouple
- Equipped with a variety of options
Main Specifications
Specifications
| Product Code | Model | Internal capacity | Internal dimensions（W×D×H mm） | External dimensions（W×D×H mm） | Power supply | Weight |
|---|---|---|---|---|---|---|
| 214124 | FP102 | 1.5L | 100×150×100mm | 376×404×515mm | Single phase AC115V 10A Erectoric code length is 2m |
29kg |

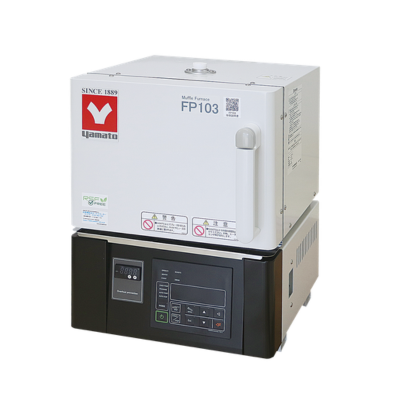

| 214145 | FP103 | 1.5L | 100×150×100mm | 376×404×515mm | Single phase AC100V 11.5A Plug is not attached, Electric code length is 2m |
29kg |
| 214146 | FP303 | 7.5L | 200×250×150mm | 446×504×565mm | Single phase AC100V 24.5A Plug is not attached, Electric code length is 2m |
43kg |
| 214147 | FP313 | 7.5L | 200×250×150mm | 446×504×565mm | Single phase AC200V 12.5A Plug is not attached, Electric code length is 2m |
43kg |
| 214148 | FP413 | 11.3L | 300×250×150mm | 506×504×625mm | Single phase AC200V 16.5A Plug is not attached, Electric code length is 2m |
51kg |
Main Specifications
| Product Code | Model | Internal dimensions（W×D×H mm） | External dimensions（W×D×H mm） | Power supply | Weight |
|---|---|---|---|---|---|
| 214136 | FO101 | 100×150×105mm | 346×405×517mm | Single Phase AC100V 11A Plug is not attached, Electric code length is 2m |
24kg |
| 214137 | FO201 | 100×250×155mm | 346×505×567mm | Single Phase AC100V 16A Plug is not attached, Electric code length is 2m |
30kg |
| 214138 | FO301 | 200×250×155mm | 446×505×567mm | Single Phase AC100V 21A Plug is not attached, Electric code length is 2m |
37kg |

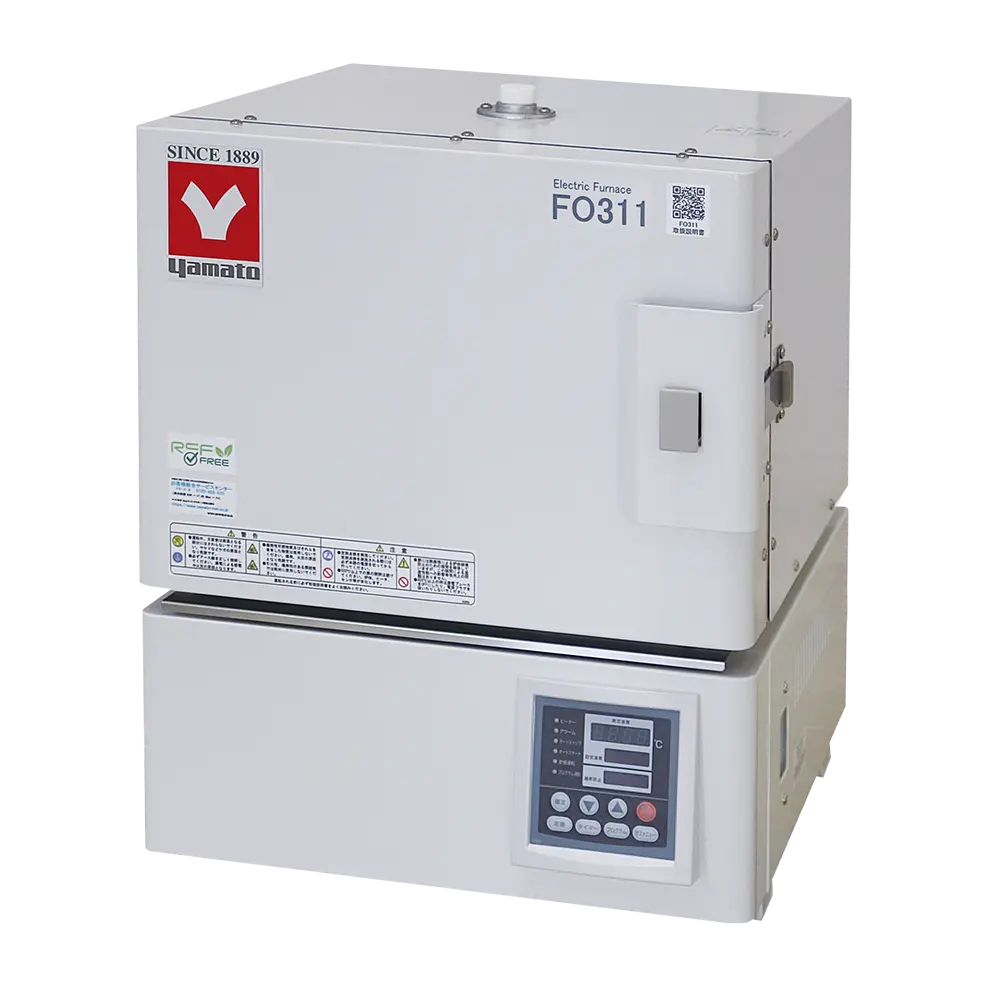

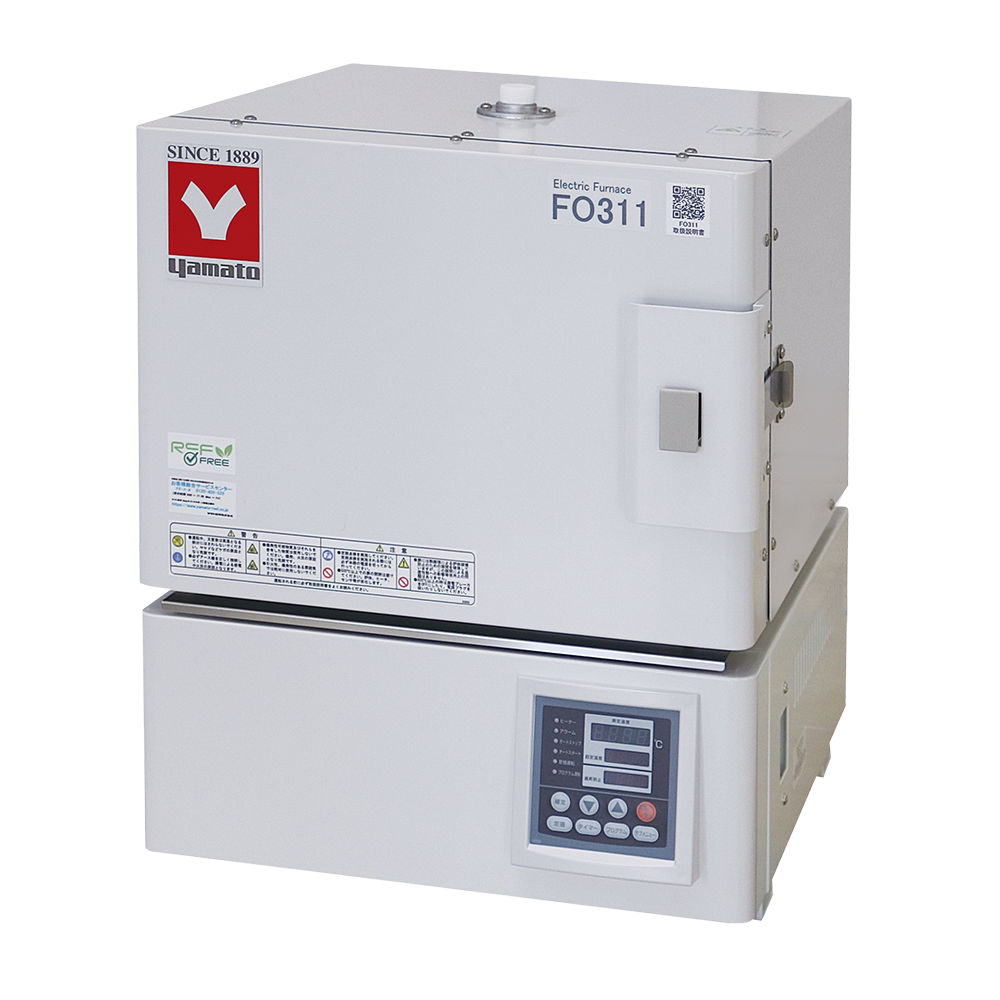

| 214139 | FO311 | 200×250×155mm | 446×505×567mm | Single Phase AC200V 11A Plug is not attached, Electric code length is 2m |
37kg |
| 214140 | FO411 | 200×300×155mm | 446×554×567mm | Single Phase AC200V 12A Plug is not attached, Electric code length is 2m |
38kg |
| 214120 | FO510 | 300×250×155mm | 507×504×627mm | AC220V 13A Single-phase |
44kg |
| 214141 | FO511 | 300×250×155mm | 507×504×627mm | Single Phase AC200V 13.5A Plug is not attached, Electric code length is 2m |
44kg |
| 214121 | FO610 | 250×350×205mm | 507×604×677mm | AC220V 15A Single-phase |
52kg |
| 214142 | FO611 | 250×350×205mm | 507×604×677mm | Single Phase AC200V 16A Plug is not attached, Electric code length is 2m |
52kg |
| 214143 | FO711 | 270×350×255mm | 507×605×727mm | Single Phase AC200V 18.5A Plug is not attached, Electric code length is 2m |
58kg |
| 214123 | FO810 | 300×400×255mm | 507×655×727mm | AC220V 20A Single-phase |
62kg |
| 214144 | FO811 | 300×400×255mm | 507×655×727mm | Single Phase AC200V 21A Plug is not attached, Electric code length is 2m |
62kg |
