Gas Chromatography-Mass Spectrometry (GC-MS)
Gas Chromatography-Mass Spectrometry (GC-MS)

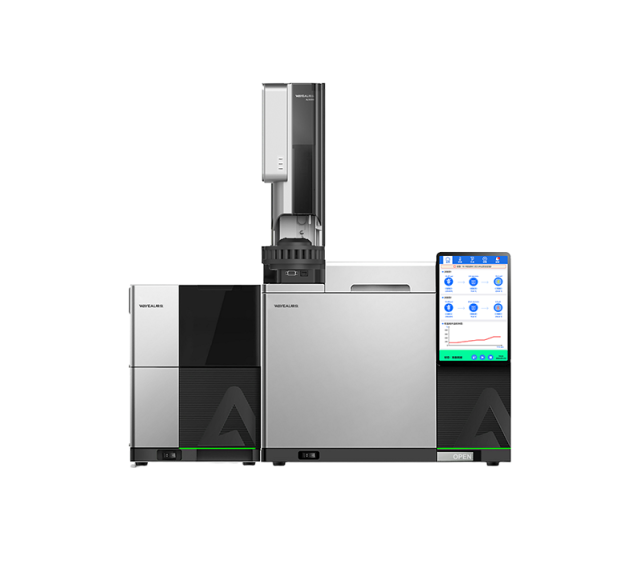

Wayeal GM6100 Gas Chromatography-Mass Spectrometry (GC-MS) Systems integrates the upgraded GC6100 gas chromatograph with a high-performance mass spectrometer detector, creating a precise and intelligent gas chromatography-mass spectromet system. Through advanced control systems and intelligent algorithms, it ensures the continuity and stability of the experimental process.
Introduction of Gas Chromatography-Mass Spectrometry (GC-MS) Systems
Wayeal GM6100 Gas Chromatography-Mass Spectrometry (GC-MS) Systems integrates the upgraded GC6100 gas chromatograph with a high-performance mass spectrometer detector, creating a precise and intelligent gas chromatography-mass spectromet system. Through advanced control systems and intelligent algorithms, it ensures the continuity and stability of the experimental process.
Technical Specification of GM6100 Gas Chromatography-Mass Spectrometry (GC-MS)
| Working Conditions | |
| Power supply | 220V ±10%, 50Hz ±2% |
| Ambient Temperature | 5°C to 40°C |
| Relative Humidity | 20% to 85% |
| GC Injection Port | |
| Injection port | Split/Splitless |
| Maximum operating temperature | 450°C |
| Control precision | 0.001 psi |
| Control range | 0–100 psi |
| Maximum split ratio | 12,500:1 |
| Optional carrier gases | N₂, H₂, He, Ar |
| Flow rate range | N₂：0–500 mL/min；H₂：0–1250 mL/min；He：0–1250 mL/min |
| Oven | |
| Temperature range | Above ambient temperature +4°C to 450°C |
| Programmable temperature ramps | 32 steps/33 platforms |
| Maximum heating rate | ≥75°C/min (up to 120°C/min optional) |
| Column cooling time (22°C ambient) | From 450°C to 50°C in less than 5 minutes |
| Maximum program run time | 9999.99 minutes |
| Mass Spectrometry Detector | |
| Ion Source | |
| Ionization energy | 15-250eV |
| Ion source temperature | 150-350℃ |
| Transfer line temperature | 100-350℃ |
| Quadrupole Mass Filter | |
| Mass range | 0.5amu-1250 amu |
| Mass stability | < 0.10 amu/48 hrs |
| Acquisition mode | scan,SIM,scan and SIM |
| Ion Detector | |
| Maximum scan speed | 20000amu/ s |
| Dynamic range | 106 |
| Fore pump pumping speed | ≥4m³/h |
| Turbo molecular pump pumping speed | ≥250L/s |
| Autosampler | |
| Sampler capacity | 16 positions |
| Solvent bottle positions | 2 |
| Waste bottle positions | 1 |
| Syringe cleaning modes | Standalone, pre-injection, post-injection |
| Injection Volume | 0.1-5ml |
| Software | Smart Lab CDS GC-MS Workstation |
